Lineup

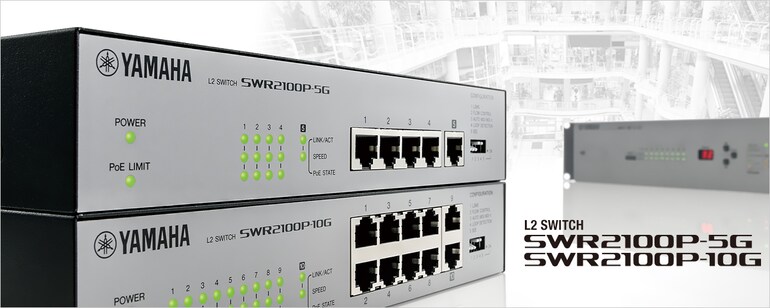

SWR2100P-10GL2 Switch
SWR2100P Netzwerk-Switch ist mit zehn RJ45-Anschlüssen ausgestattet.
- Anschlüsse für PoE Stromversorgung: 1-9 / Uplink-Anschluss: 9
- Maximal 30 Watt können über einen PoE-Port ausgegeben werden (alle Ports 70 Watt)
SWR2100P-5GL2 Switch
SWR2100P Netzwerk-Switch mit fünf RJ45-Anschlüssen
- Anschlüsse für PoE Stromversorgung: 1-4 / Uplink-Anschluss: 5
- Maximal 30 Watt können über einen PoE-Port ausgegeben werden (alle Ports 70 Watt)
Optionen
RK-SWR
Rack-Montage-Zubehör für SWR-Switche
- Abmessungen: B 482,6 mm x T 300 mm x H 44mm
- Gewicht: 1,7kg
- Verfügbar für SWR2311P-10G, SWR2310-10G, SWX2210P-10G, SWR2100P-10G
Features
Intelligenter L2-Netzwerk Switch mit PoE
Yamaha hat sein Wissen über IT und Pro-Audio genutzt, um mit der "SWR2100P-Serie" einen einfachen L2-Switch anzubieten, der für vernetzte Audio-Installationen optimiert wurde. Der Switch kann die Vorteile von "Yamaha LAN Monitor" nutzen, einer speziellen Computeranwendung, die "Network Visibility" für umfassende Überwachung und Kontrolle bietet.
Supplies power to PoE-enabled Dante devices on the network

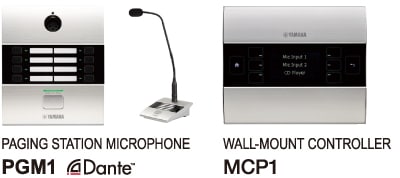

The "SWR2100P series” which are simple L2 switches can supply power as well as audio and control signals to a PoE-compliant Dante device such as the paging station microphone “PGM1” through just one Ethernet cable. Since the power supply and the network wiring can be combined, the number of cables being used can be reduced, and the connection distance can be extended, so the degree of freedom of Dante device installation is increased and construction flexibility is further improved.
Comprehensive Monitoring

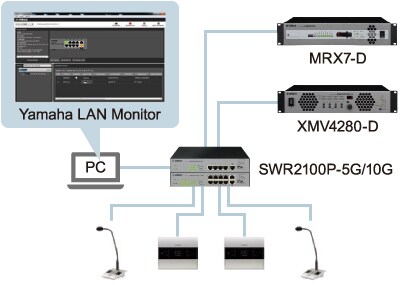

Systems built around the SWR2100P-5G or SWR2100P-10G L2 switches allow comprehensive network monitoring from the dedicated Yamaha LAN Monitor software application, with PoE power status monitoring and ON/OFF switching capability.
Complete Network Overview

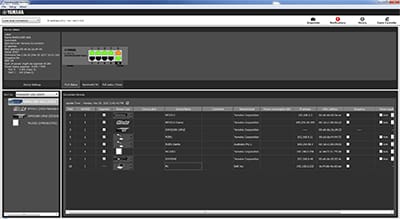

Understanding how multiple switches installed in different locations are connected, plus how network devices are connected to those switches, can be a difficult, time-consuming task. The Yamaha LAN Monitor makes overall network topology clearly visible, giving the user a comprehensive overview of how multiple switches and Dante network devices are interconnected. Simply connect a computer to the nearest SWR2100P series switch and launch the Yamaha LAN Monitor software.
Snapshot Function Makes Troubleshooting Easy

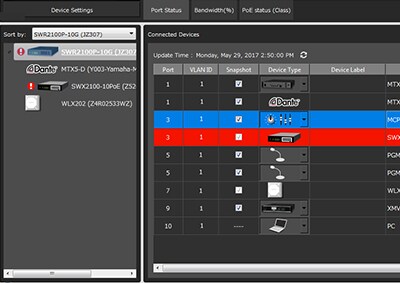

You can take a “snapshot” of the network status when set up as required. The software can then automatically keep track of the settings and alert you to any changes. You could take a snapshot of the network, and then you would be alerted if a cable is disconnected, if a device is turned off, or if a wrong connection is made prior to the performance, for example.
Enhanced Device ID with Icons, Labels and Comments

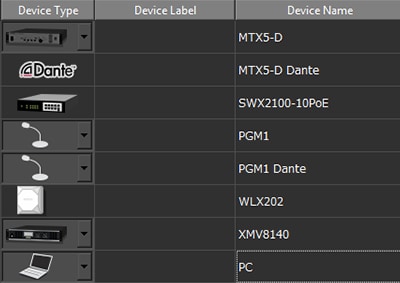

Identifying devices connected to a switch by only their IP or MAC address is a difficult and error-prone approach. Connected Dante devices are identified by a Dante icon as well as a device ID previously set up via the Dante Controller software. You can also enter additional info, such as the location of the device, in the Label and Comment fields.
Gemeinsame Überwachung und Neustart von Geräten, die über ein großes Gebiet verteilt sind
Wenn das Überwachungsgerät nicht auf einen Ping antwortet, geht es davon aus, dass ein Fehler aufgetreten ist, und unterbricht automatisch die PoE-Stromzufuhr zu diesem Gerät und nimmt sie dann wieder auf. Dadurch wird das Überwachungsgerät neu gestartet und die Wiederherstellung versucht. Durch die kollektive Verwaltung des Status von Geräten, die über einen großen Bereich verteilt sind, kann das Gerätemanagement wesentlich reibungsloser ablaufen.
Systeme
System Example

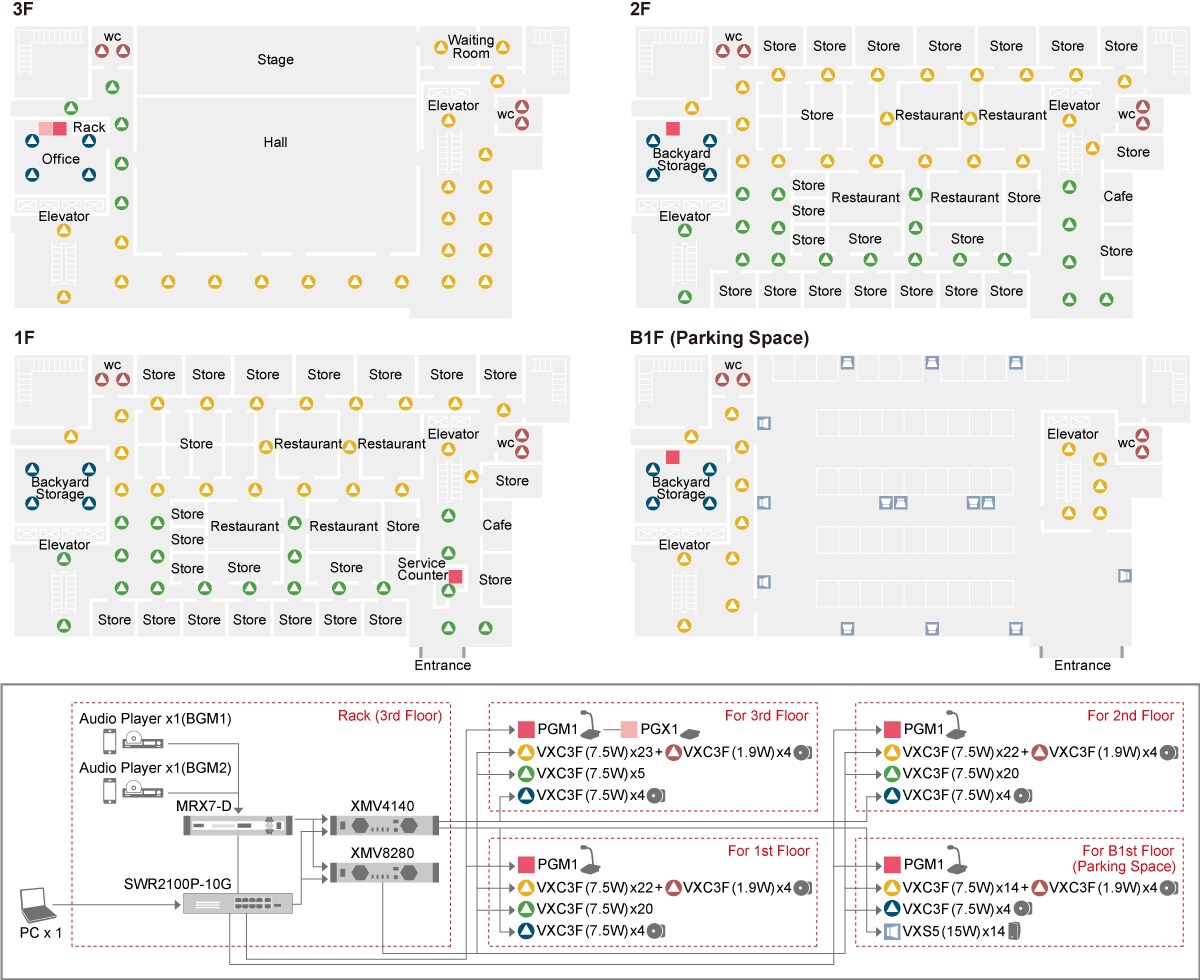

SWR2100P series switches not only make it easier to design and install audio network systems, but result in more convenient and controllable installations as well. A combination of MRX7-D and XMV devices is ideal for large-scale applications such as shopping centers. In this system, Dante compatible PGM1 units can be added to provide multiple remote paging stations. In the setup shown, a PGM1 unit located in the 3rd floor office is set up as a master station that will take priority over all other PGM1 units for emergency announcements. The VXC3F and VXS5 speakers allow high-impedance connections, making it possible to distribute multiple speakers over a wide area for broad coverage. A tap on the speakers allows output wattage to be easily changed to create the desired BGM and announcement balance, even after installation.
